Resolution of Capillary Chromatography

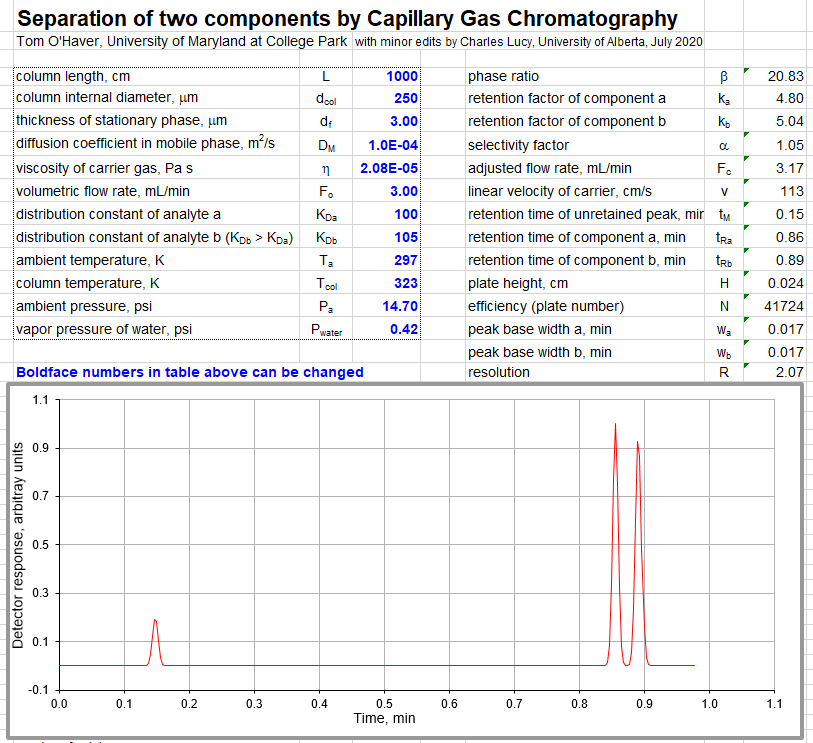

Shows how a difference between the distribution coefficient of two components can lead to separation in capillary gas chromatography. Students select column length, column internal diameter, thickness of stationary phase, diffusion coefficient in mobile phase, viscosity of carrier gas, flow rate, ambient temperature, and column temperature. The simulation calculates the phase ratio, selectivity, linear velocity of carrier, retention time of unretained peak, retention time of the two components, plate height, efficiency (plate count), peak base width, and resolution. Displays plot of simulated chromatogram showing two component peaks and an unretained peak.

Excel format: Capillary.xls (with improvements by Charles Lucy, University of Alberta, July 2020)


[Return to Index]


Cell definitions and equations:
Inputs:
column length, cm	L
column internal diameter, cm	id
thickness of stationary phase, cm	df
diffusion coefficient in mobile phase, cm2/min	Dm
viscosity of carrier gas,  poise	eta
volumetric flow rate, mL/min	Fo
distribution coefficient of component a	Kda
distribution coefficient of component b	Kdb
ambient temperature, K	Ta
column temperature, K	Tc
ambient pressure, psi	Pa
vapor pressure of water, psi	Pwater

Outputs:
phase ratio	ß =i d/(4*df)
ka = Kda/beta
kb = Kdb/beta
selectivity	a = kb/ka
adjusted flow rate, mL/min
Fc = Fo*(Tc/Ta)*(Pa-Pwater)/Pa linear velocity of carrier, cm/min
v = Fc/(3.14159*(id/2-df)^2) retention time of unretained peak, min to = L/v retention time of component a, min tra = (ka*to)+to retention time of component b, min trb =( kb*to)+to plate height, cm
h = (2*Dm)/v+((id/2)^2*((1+6*kb+11*kb*kb)/
(24*(1+kb)*(1+kb)))/Dm)*v efficiency (plate count) N = L/h peak base width a, min twa = tra/sqrt(N/16) peak base width b, min twb = trb/sqrt(N/16) resolution
R = sqrt(N)*((alpha-1)/alpha)*(kb/(1+kb))/4
